PDTC114ET

Type Designator: PDTC114ET

SMD Transistor Code: p16_t16_W16

Material of Transistor: Si

Polarity: Pre-Biased-NPN

Built in Bias Resistor R1 = 10 kOhm

Built in Bias Resistor R2 = 10 kOhm

Typical Resistor Ratio R1/R2 = 1

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 10 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Collector Capacitance (Cc): 2.5 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

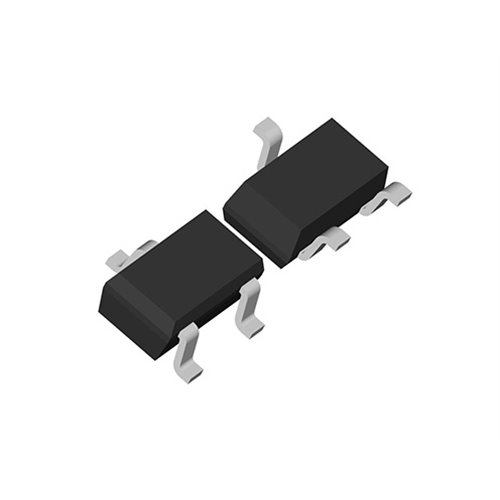

Package: SOT23

Minimum sipariş tutarı 150,00TL'dir.1500,00TL üzeri alışverişlerde kargo ücreti alınmamaktadır.
Alıcı ödemeli kargolar , kargo firmasının kendi verdiği tarifeden gitmektedir.Tüm sorumluluk alıcıya aittir.
Stokta kalmayan ürünleri [email protected] mail adresimizden sorabilirsiniz.
Ürün hakkında bilgi almak için 0212 252 62 92 no'lu telefonumuzdan yada 0544 614 15 37 no'lu whatsap hattımızdan da ulaşabilirisiniz.

PDTC114ET

Type Designator: PDTC114ET

SMD Transistor Code: p16_t16_W16

Material of Transistor: Si

Polarity: Pre-Biased-NPN

Built in Bias Resistor R1 = 10 kOhm

Built in Bias Resistor R2 = 10 kOhm

Typical Resistor Ratio R1/R2 = 1

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 10 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Collector Capacitance (Cc): 2.5 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

Package: SOT23
